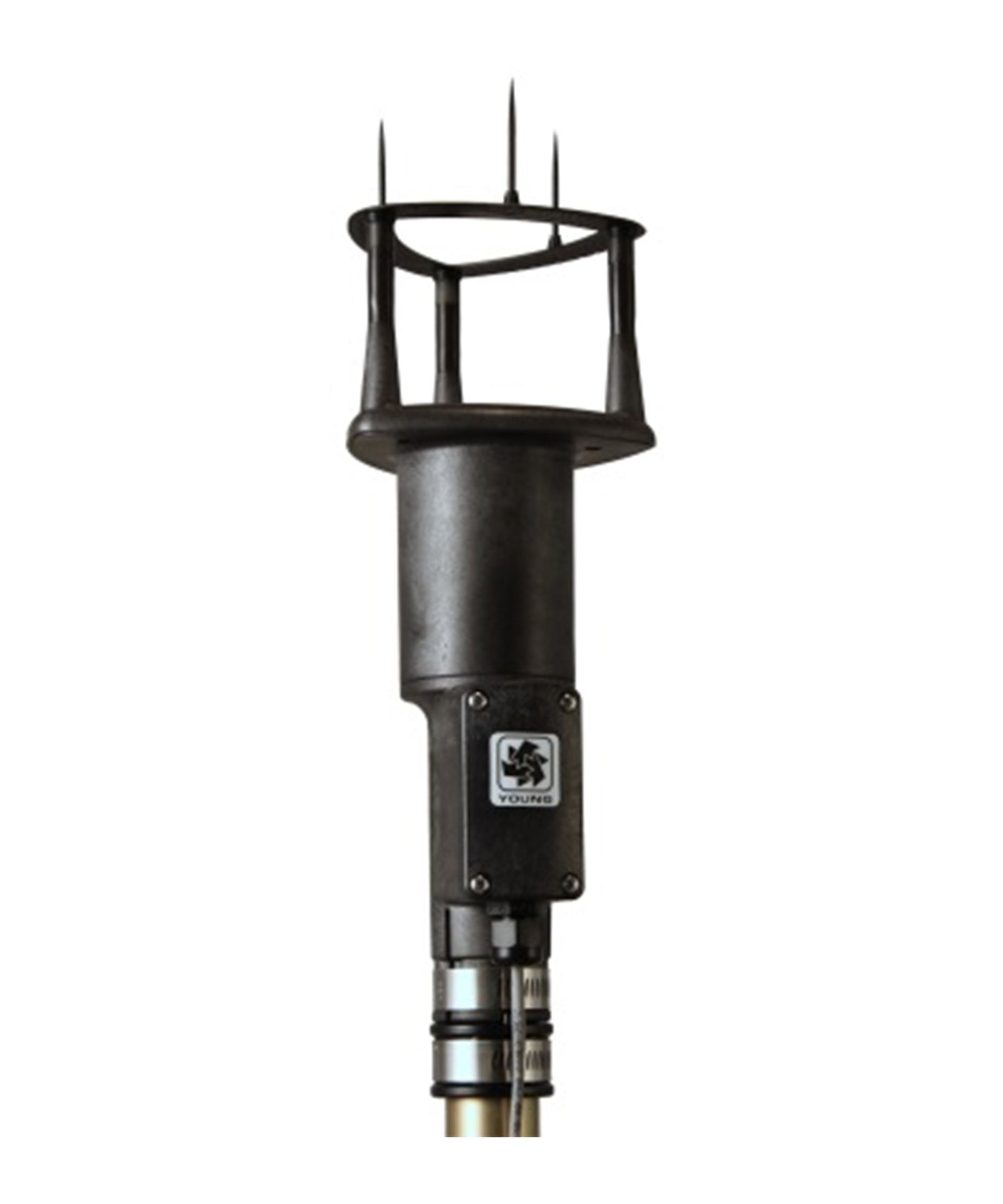

RM Young Ultrasonic Anemometer Marine 86106 Model
RM Young Ultrasonic Anemometer Marine 86106 Model
Product Description
Introducing the YOUNG Model 86106 next generation 2D Ultrasonic Anemometer. The sensor offers high performance and low power consumption in a compact size. It is ideal for the most demanding wind sensing applications.
The sensor features durable, corrosion-resistant construction with sensitive ultrasonic transducers secured in a streamlined molded frame. The 86106 is fully wind tunnel tested and calibrated to provide accurate wind measurement over a wide operating range.
The standard sensor includes many useful output options. Analog voltage outputs are provided for wind speed and wind direction. 4-20 mA current signals are available for each channel and are well suited for long cable runs or for industrial settings where noise immunity is important.
A variety of serial output formats are also available. These include ASCII text, RMYT (compatible with YOUNG displays) and NMEA formats. The sensor installs on readily available 1 inch (IPS) pipe. Wiring connections are made in a convenient weatherproof junction box; special mounting adapters, connectors and cables are not required
General Specifications
| Product Name | Ultrasonic Anemometer Marine Model 86106 |
| Wind Speed | Range: 0 – 75 m/s Resolution: 0.01 m/s Starting Threshold: 0.01 m/s Accuracy: 30 m/s +/- 2% or 0.1 m/s, 75 m/s +/- 3% Response Time: <0.25 seconds |
| Wind Direction | Azimuth Range: 0 - 360 degrees Resolution: 0.1 degree Starting Threshold: 0.01 m/s Accuracy: +/- 2 degrees Response Time: <0.25 seconds |
| Serial Output | RS232 or RS485 Formats: ASCII, ASCII polled, NMEA, RMYT, SDI-12 Baud: 1200, 4800, 9600, 38400 Wind Units: m/s, knots, mph, kmph Wind Format: Speed & Direction or U & V Status Indicator: Standard with ASCII & NMEA |
| Analog Outputs | 0-5000 mV or 4-20 mA Analog Wind Scale: 0-100 m/s Analog Direction Scale: 0-360 or 0-540 degrees |
| Output Update Rate | 0.1 to 10 Hz |
| Power Requirement | Sensor: 10-30 VDC < 20 mA typical Heater: 24 VDC |
| Environmental | Operating Temperature: -40 to +60°C Protection Class: IP65 |
Size Specifications
| Dimensions (cm) | 29cm (H) x 11cm (W) |
| Weight (kg) | 0.4kg |
Further information
Manufacturer Product Features and Details
Product Sheet
User Manual
Product Code
RMY-91000
Warranty Terms
Warranty period: 1 year from date of purchase
Terms and conditions apply
